Ejection Seat [Fig. 4-2]

Parent Previous Next

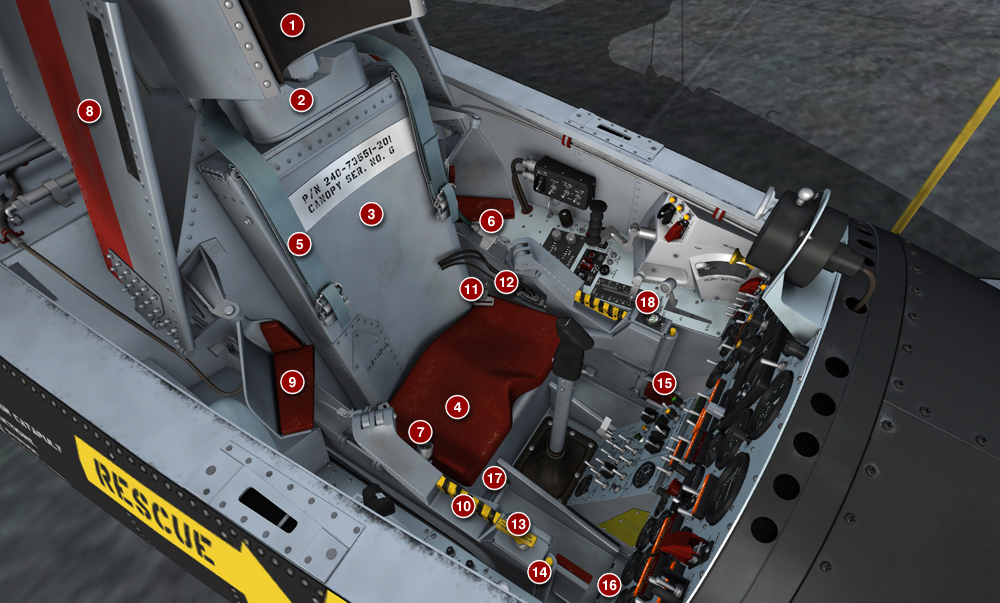

Figure 4-2


  1. Ejectable Headrest
  2. Pilot Chute Container
  3. Parachute Container
  4. Breathing Oxygen Bottles (2, under the seat)
  5. Shoulder Harness and Parachute Riser (2)
  6. Parachute D-Ring
  7. Physiological Instrumentation Cable Receptacle
  8. Stabilizing Fin (2)
  9. Armrest (2)
  10. Ejection Handle and Release Latch (2)
  11. Lap Belt Release Pip Pin (2)
  12. Personal Leads Disconnect
  13. Restraint Emergency Release Handle
  14. Foot Restraint Release Button (2)
  15. Foot Restraint (2)
  16. Deflector (2)
  17. Foot Restraint Operating Bar (2)
