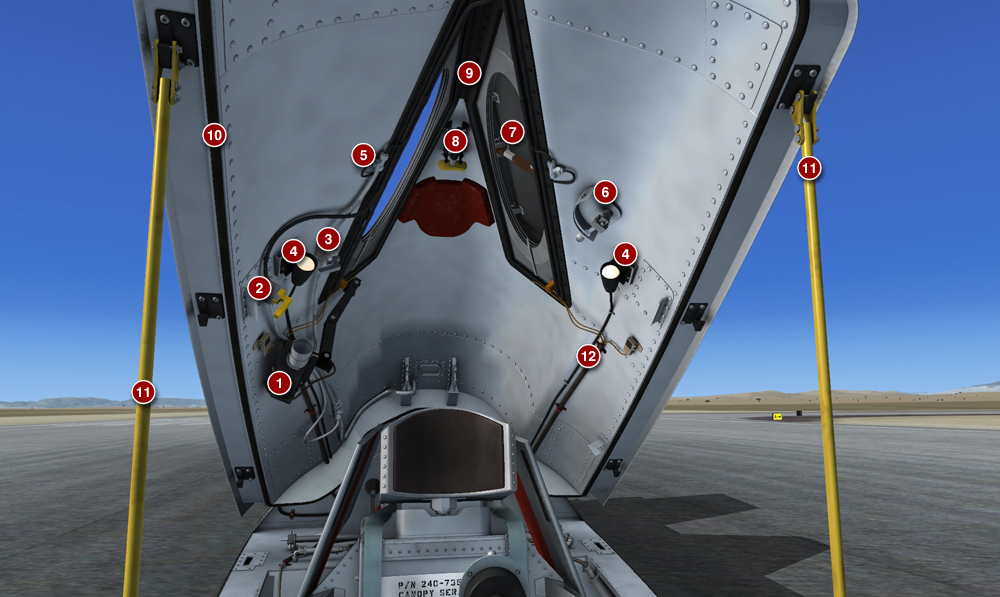

Canopy [Fig. 4-3]

Parent Previous Next


Figure 4-3


  1. Movie Camera
  2. Windshield Antifogging Valve and Handle
  3. Windshield Purge Valve and Handle
  4. Cockpit Floodlights
  5. Windshield Antifogging and Purge System Tubing
  6. Eyelid Handle
  7. Eyelid
  8. Head Restraint
  9. Elliptical Windows or Trapezoidal Windows
  10. Canopy Seal
  11. Canopy Support Rods
  12. Electrical Cables
