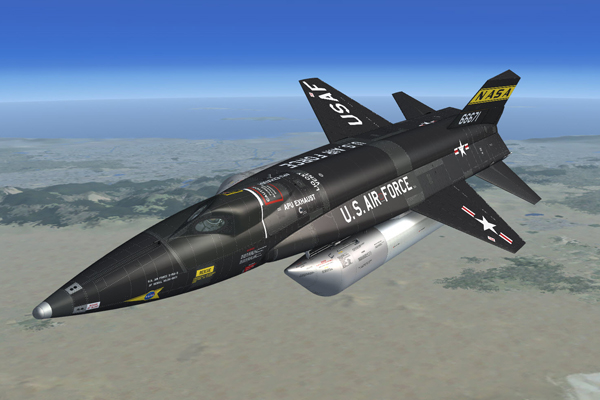

X-15A-2.
Engine
One (1) Reaction Motors XLR-99 "throttable" liquid-fuel turborocket engine |
60,000 lbs (thrust) |
Aircraft Weight with External Tanks
Launch |
51,600 lbs |
Burnout (drop tanks jettisoned) |
16,500 lbs |
Landing (drop tanks jettisoned) |
15,600 lbs |
Aircraft Weight without External Tanks
Launch |
32,250 lbs |
Burnout |
16,200 lbs |
Landing |
15,500 lbs |
Speed Limitations
Note: The highest Mach number attained by the real X-15A-2 rocket plane was Mach 6.7 (October 3, 1967), the fastest flight of the X-15 research program. The current maximum speed attainable in the simulator is approx. Mach 4.65.
MMO – Maximum Aircraft Operating Speed (Mach) |
4.65 Mach |
Maximum Speed with External Tanks Attached (Mach) |
2.6 Mach |
VLO – Maximum Gear Operating Speed |
300 KIAS |
VLE – Maximum Landing Gear Extension Speed |
300 KIAS |
VFE – Maximum Flap Extended Speed (40 degrees) |
300 KIAS |
q – Maximum Dynamic Pressure without External Tanks |
2200 psf |
q – Maximum Dynamic Pressure with External Tanks |
1000 psf |
Maximum Acceleration (above 50,000 feet) |
8 G |
Mach Limitations vs Altitude
10,000 feet |
0.8 Mach |
20,000 feet |
1.6 Mach |
30,000 feet |
1.8 Mach |
40,000 feet |
2.8 Mach |
50,000 feet |
3.5 Mach |
60,000 feet |
4.0 Mach |
70,000 to 100,000 feet |
4.65 Mach |
Fictitious Ground Takeoff in the Simulator (standard temperature, sea level pressure altitude)
Note: The real X-15A-2 was not designed for a normal takeoff from the ground but was launched at a high altitude from a modified B-52 carrier. The X-15A-2 SE addon can take off from the ground, like any other aircraft in the simulator.
V1 – Aircraft Takeoff Decision Speed (51,600 lbs) |
250 KIAS |
VR – Aircraft Rotation Speed |
275 KIAS |
V2 – Aircraft Takeoff Safety Speed |
290 KIAS |
Launch from a Fictitious Carrier Aircraft in the Simulator
Note: It is possible to simulate a high altitude launch from a fictitious carrier aircraft by using the slew mode commands* to reposition the X-15A-2 without flying in real time or by changing the altitude and speed settings in the map dialog box. A high altitude launch flight can also be loaded.
Recommended Launch Altitude |
38,000 to 45,000 feet |
Recommended Launch Speed |
0.75 to 0.82 Mach |
External Propellant Tanks Release
Note: Under normal flight conditions, external tanks should be released as soon as practical after they are empty, at about 70,000 feet and Mach 2.1, in a zero-G normal load factor condition and an angle of attack of about 10 degrees. The external tanks must be released before an attempt is made to jettison internal system propellants.
The maximum Mach number to be attained by the X-15A-2 with the external tanks attached is 2.6. The tanks must be released before reaching that speed. This limit is imposed because flight characteristics for this configuration have not been determined for higher Mach numbers.
Maximum Mach Number with External Tanks Attached |
2.6 Mach |
Recommended Mach Number for External Tanks Release |
2.0 to 2.3 Mach |
Recommended Altitude for External Tanks Release |
65,000 to 75,000 feet |
Maximum Angle of Attack with External Tanks Attached |
16 degrees |
Recommended Angle of Attack for External Tanks Release |
5 to 10 degrees |
Normal Load Factor Condition Recommended |
0-G |
Altitude Limitations (Typical)
Note: The highest altitude attained by the real-world X-15A-2 aircraft was 249,000 feet (August 3, 1966).
Aircraft Operating Altitude |
45,000 to 150,000 feet |
Aircraft Ceiling (maximum) Altitude |
350,000 feet |
Other Limitations (Typical)
Maximum Allowable Rate of Roll |
100 degrees per second |
Speed Brakes
The speed brakes are not to be used at full deflection below Mach 1.5.
Note: The speed brakes on this airplane are not designed for use as a low-speed drag device. Their design function is to provide necessary drag conditions for control of the airplane at supersonic speeds and relatively high altitudes.
Prohibited Maneuvers
The real X-15 airplane was restricted from performing the following maneuvers:
1. Spin
2. Snap Rolls
3. Snap Maneuvers
Propellant Jettison
Note: While approaching the landing site, the remaining propellants must be jettisoned to minimize fire or explosion hazards and to lower the weight of the aircraft.
Maximum Speed at 30,000 feet |
0.60 Mach |
Maximum Speed at 15,000 feet |
0.45 Mach |
Ventral (or Dummy Ramjet) Jettison
Note: Under normal flight conditions, the ventral (or the dummy ramjet) should not be jettisoned except during landing approach. The ventral (or ramjet) must be jettisoned to provide ground clearance for the landing gear.
Maximum Mach Number |
300 KIAS or 3.5 Mach, whichever comes first |
Recommended Altitude |
5000 feet |
Minimum Altitude |
1500 feet |
Maximum Angle of Attack |
16 degrees |
Maximum Rate of Roll |
30 degrees per second |
Landing
High Key Point (106 seconds from landing) |
15,200 feet, 300 KIAS, gear and flaps up (45-degree bank turn) |
180-Turn (82 seconds) |
11900 feet, 270 KIAS, gear and flaps up |
Low Key Point (58 seconds) |
8700 feet, 240 KIAS, gear and flaps up (180 degrees opposite to the runway) |
90-Degree Point (36 seconds) |
5800 feet, 240 KIAS, gear and flaps up (90 degrees perpendicular to the runway) |
Ventral (or ramjet) Jettison |
5000 feet, 240 KIAS (lined up with the runway) |
Flaps Extended (15 seconds) |
3200 feet, 240 KIAS, roll out of turn |
Gear Down (10 seconds) |
2700 feet, 240 KIAS, 1.29 G pullout |
Flare Completed |
2200 feet, 174 KIAS |
Touchdown (0 seconds) |
174 KIAS |
VREF - Landing Approach Speed (flaps extended, gear down) |
174 KIAS |
Aircraft Stalling Speed (flaps up) |
140 KIAS |
Aircraft Stalling Speed (flaps down) |
100 KIAS |
Note: The real X-15A-2 aircraft reference information was modified for use in the simulator. For explanations of speeds used on this tab, see "V-speeds" in the Learning Center Glossary (Flight Simulator X).
*: For instructions on how to use the slew commands to reposition the aircraft without flying in real time, see "Slewing" in the Learning Center Glossary (Flight Simulator X).
