Rocket Boosters Control Panel [Fig. 5-7]

Parent Previous Next

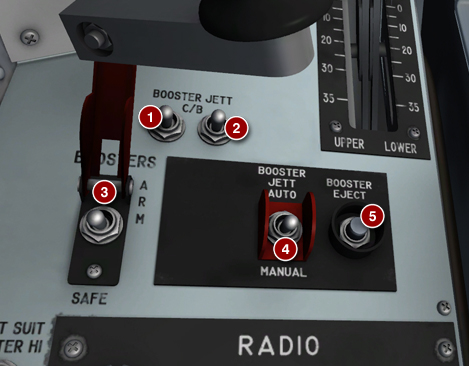

Figure 5-7


  1. Left Booster (Charges) Circuit Breaker
  2. Right Booster (Charges) Circuit Breaker
  3. Rocket Boosters Jettison Safe-Arm Switch
  4. Rocket Boosters Jettison Auto-Manual Switch
  5. Rocket Boosters Jettison Button
