SAS/ASAS/RAS Panel [Fig. 5-2]

Parent Previous Next

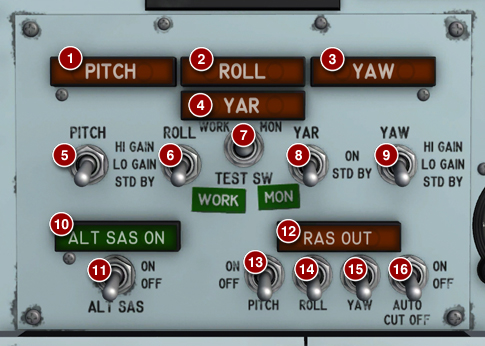

Figure 5-2


  1. SAS Pitch Caution Light
  2. SAS Roll Caution Light
  3. SAS Yaw Caution Light
  4. SAS Yar Caution Light
  5. SAS Pitch Function Switch (Altitude Hold)
  6. SAS Roll Function Switch (Wing Leveler)
  7. SAS Test Switch
  8. SAS Yar Function Switch (Attitude Hold)
  9. SAS Yaw Function Switch (Yaw Damper)
  10. Alternate SAS ON Light
  11. Alternate SAS Switch
  12. RAS-Out Indicator Light
  13. RAS Pitch Function Switch
  14. RAS Roll Function Switch
  15. RAS Yaw Function Switch
  16. RAS Automatic Cutoff Switch
