Center Pedestal [Fig. 5-3]

Parent Previous Next

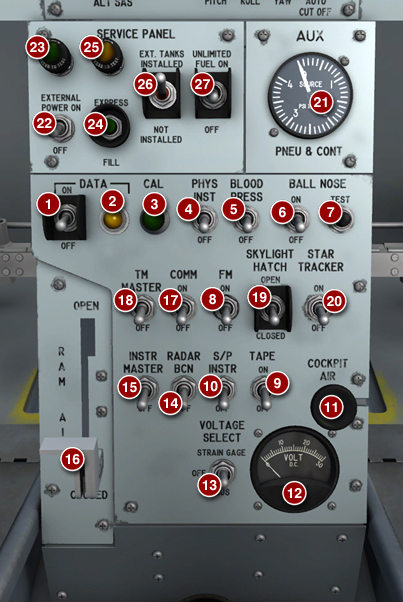

Figure 5-3


  1. Data Switch
  2. Data Light
  3. Calibrate Button and Light
  4. Physiological Instrumentation Switch
  5. Blood Pressure Switch
  6. Ball Nose Power Switch
  7. Ball Nose Test Button
  8. FM Telemeter Power Switch
  9. Tape Recorder Power Switch
  10. Stable Platform Instrument Switch
  11. Cockpit Ram-Air Knob
  12. DC Voltmeter
  13. DC Voltmeter Switch
  14. Radar Beacon Switch
  15. Instrumentation Master Power Switch
  16. Ram-Air Lever
  17. Telemeter Commutator Motor Switch
  18. Telemeter Master Power Switch
  19. Skylight Hatch Switch
  20. Star Tracker Power Switch
  21. Auxiliary Pneumatic and Control Pressure Gauge
  22. External Power Switch
  23. External Power ON Light
  24. Express Fill Button
  25. Empty Tank Caution Light
  26. External Tank Option Switch (Rocket Booster Option Switch on the X-15AD-4)
  27. Unlimited Fuel Option Switch
