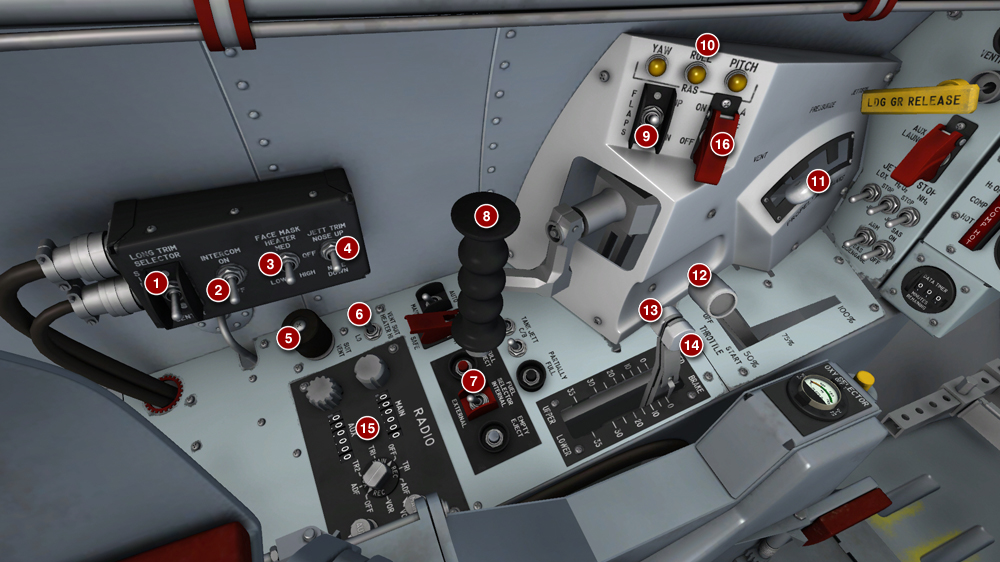

Cockpit Left Side [Fig. 5-4]

Parent Previous Next


Figure 5-4


  1. Trim Control Switch
  2. Intercommunication Switch
  3. Face Mask Heater Switch
  4. Jettison Trim Switch
  5. Pressure Suit Ventilation Knob
  6. Vent Suit Heater Switch
  7. Drop Tanks Control Panel (or Rocket Boosters Control Panel on X-15AD-4)
  8. Ballistic Control Stick
  9. Wing Flap Switch
  10. RAS Yaw, Roll and Pitch Control Indicator Lights
  11. Vent, Pressurization, and Jettison Lever
  12. XLR-99 Engine Throttle
  13. Upper Speed Brake Handle
  14. Lower Speed Brake Handle
  15. Radio Control Panel (COM, ADF, VOR Controls)
  16. Alternate SAS Switch
